3D Printed Protection #2 – Horizontal Bus Bar Access

I finished the design for the horizontal bus bar option – I have three variations:

1. Both the left and right side access for horizontal bus bar
2. Left hand side access for horizontal bus bar
3. Right hand side access for horizontal bus bar

These will allow a 1 inch bus bar horizontally.

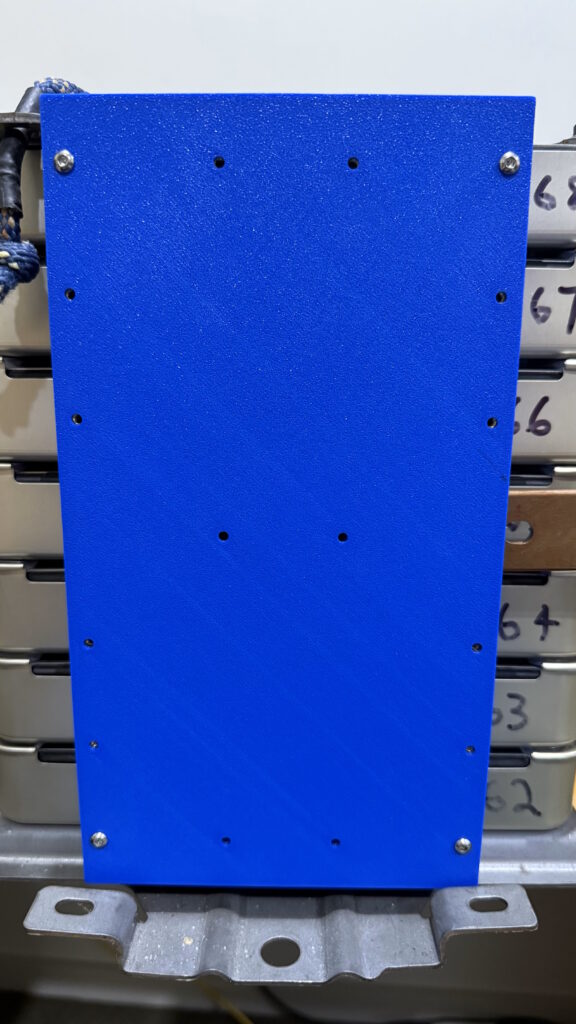

I also got to print the top piece which protects the bus bars from the top of the stack.

Here is a video of a quick test assembly.

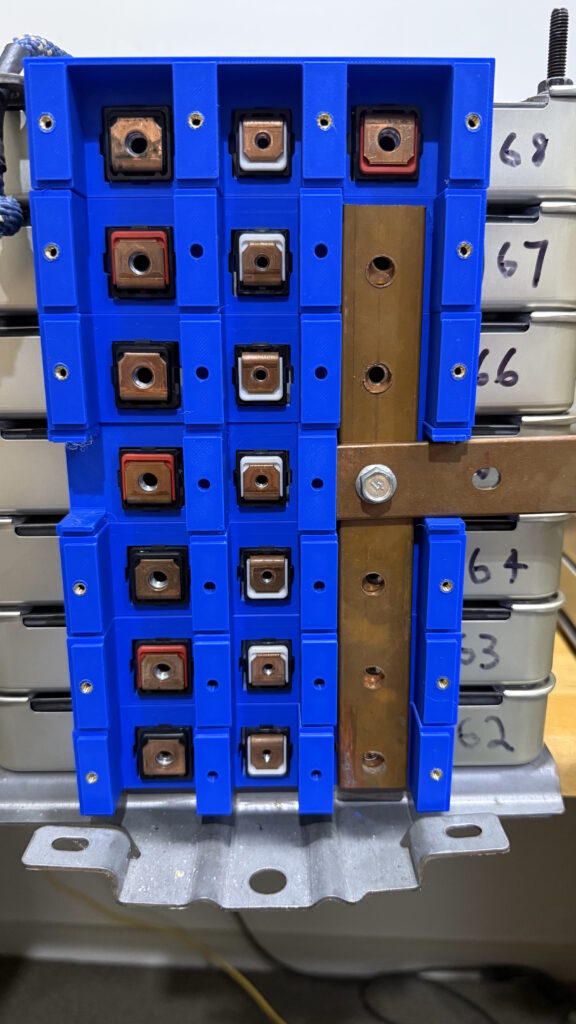

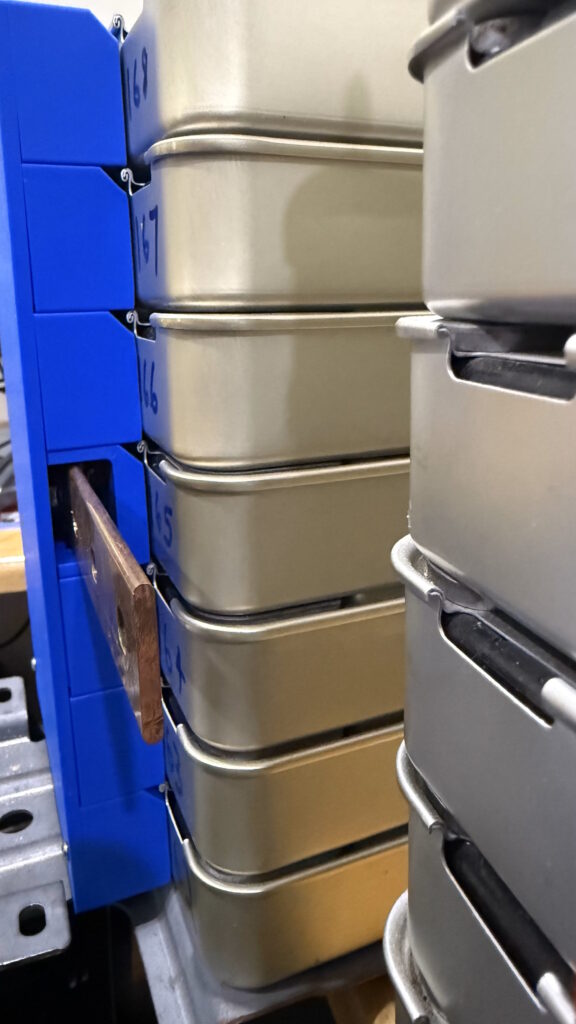

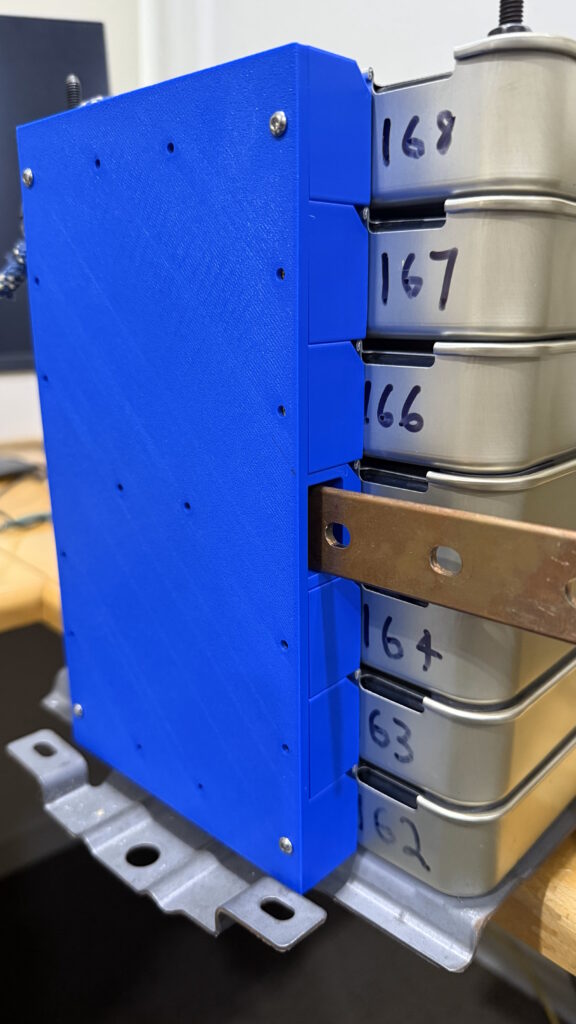

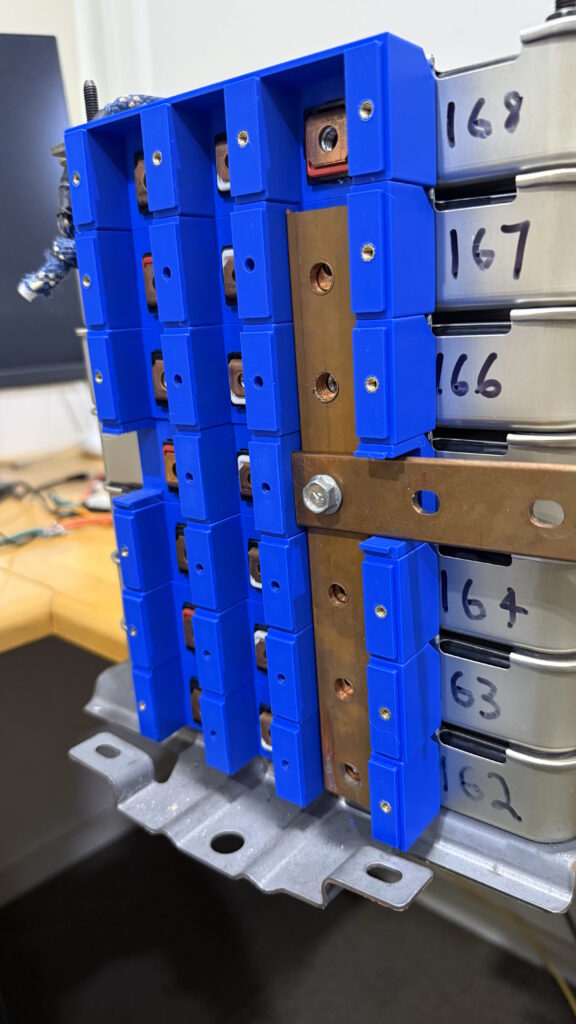

Here are some pictures. Note the bus bars are just old scrap – I’m using them only to ensure things fit.
